Automatic. Challenging. Contact.

Electromobility and stationary storage - contacting at cell level

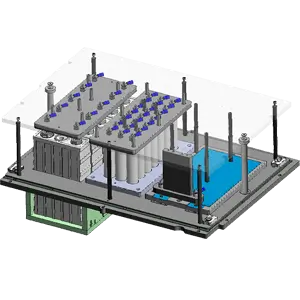

Contacting prismatic, round (21700) and pouch cells

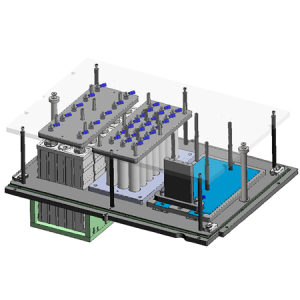

Example contacting of prismatic, round (21700) and pouch cells!
Contacting with spring-loaded contact pins on round cells

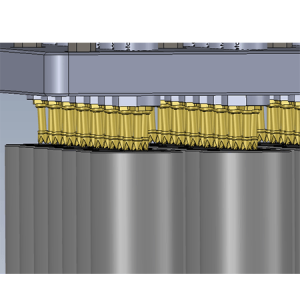

Example of contacting with spring-loaded contact pins on round cells Example contacting of prismatic, round (21700) and pouch cells!

The requirements in the field of e-mobility and stationary storage are constantly presenting cell manufacturers with new challenges, especially when it comes to contacting the cell arresters, for forming and validation at cell level. Extremely sophisticated systems are required here, which keep the contact transitions stable within very narrow limits over the entire contacting period.

Diese Anforderungen erfordern z.Tl. komplett neue Ansätze mit gefederten Kontaktelementen. Ein Weg ist z.B. eine bewegte Scratch-Kontaktierung in automatisierten Formatierungstürmen, ein Verfahren, welches bereits erfolgreich im realen Einsatz getestet wurde und sich bewährt hat.

The entire field of cell production requires special solutions, especially when it comes to contacting. Be it high currents, constant voltages, temperatures or material pairings that pose the challenge here.

Challenge us! We would be pleased to develop and manufacture your cell contacting for you. It does not matter to us whether it is a round, prismatic or pouch cell, a prototype or large series production.

Contact us!

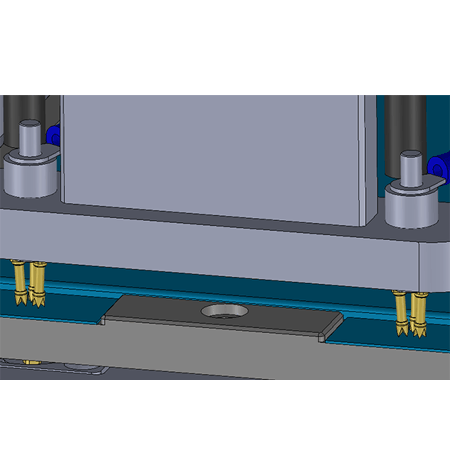

Scratch contacting of cell arresters of a pouch cell (possible from both sides)
Scratch contacting of cell arresters of a pouch cell (possible from both sides)

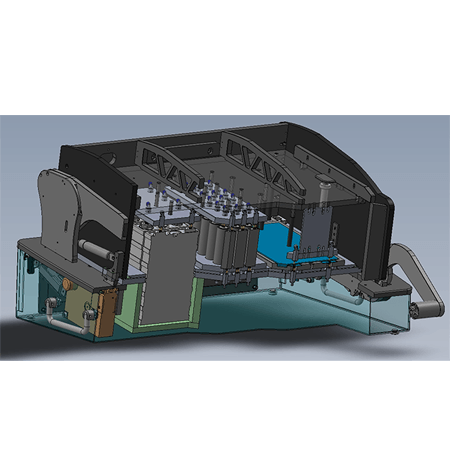

Section of a mechanical contacting of different cell formats in a manual adaptation for laboratory and small series production
Section of a mechanical contacting of different cell formats in a manual adaptation for laboratory and small series production

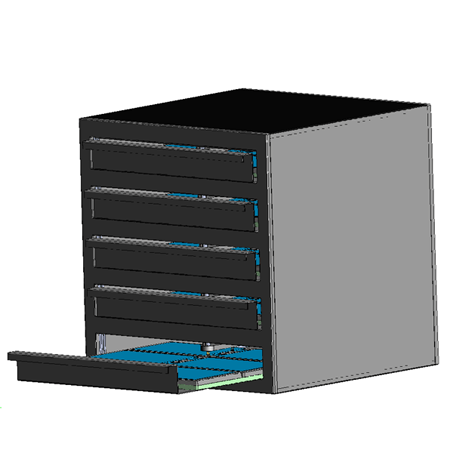

Scalable and stackable cell contacting for fully automated operation
Scalable and stackable cell contacting for fully automated operation

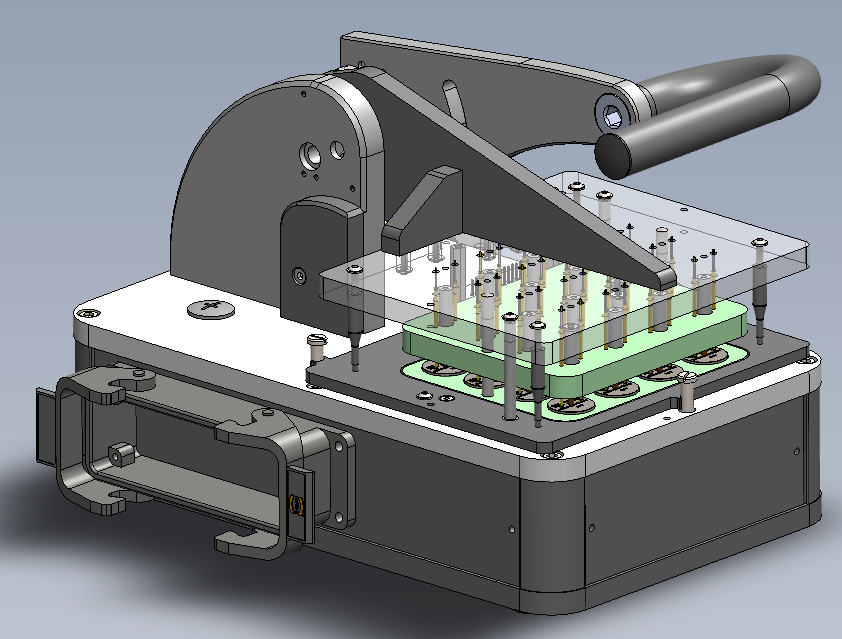

Contacting on both sides and temperature measurement
Contacting on both sides and temperature measurement

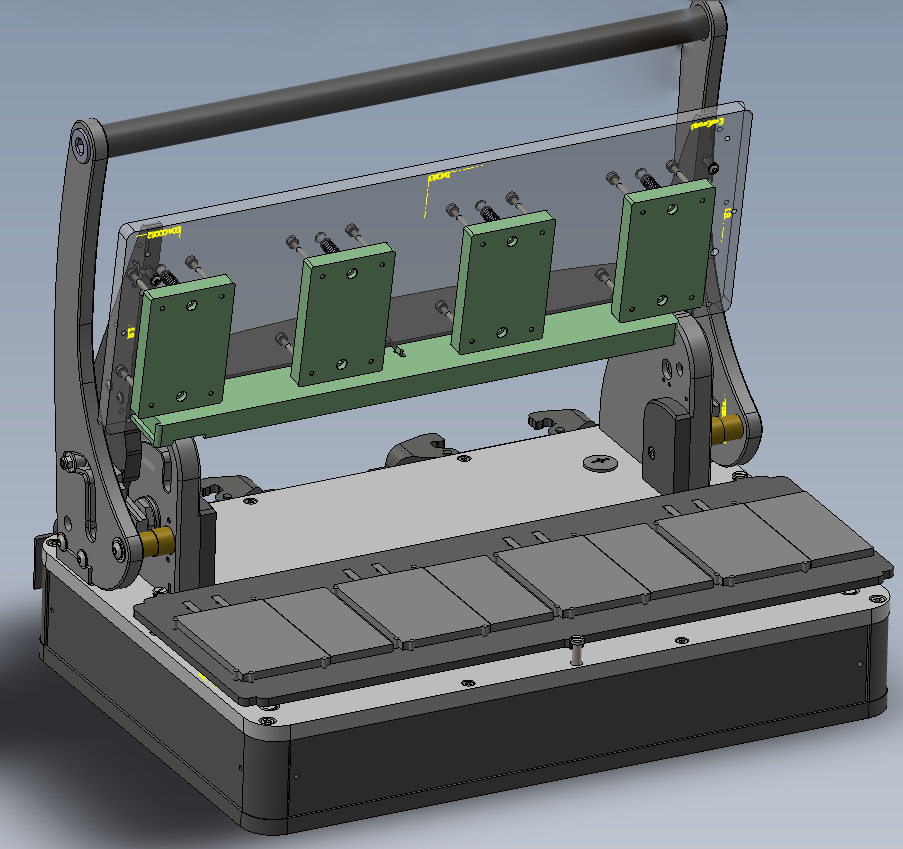

Single-sided contacting from below incl. temperature measurement as well as spring-loaded hold-down of the cell body (hold-down pressure definable)
Single-sided contacting from below incl. temperature measurement as well as spring-loaded hold-down of the cell body (hold-down pressure definable)

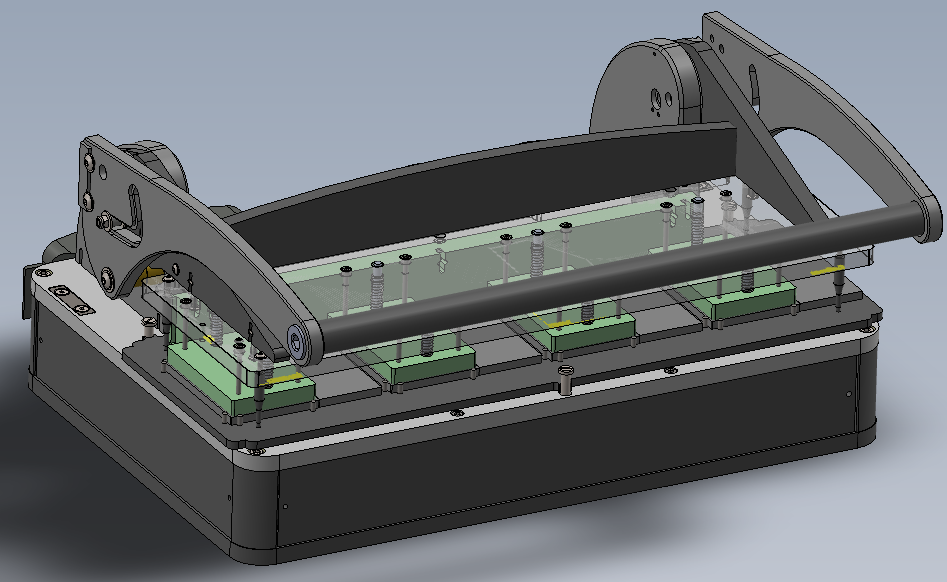

Contacting closed
Contacting closed
