In Circuit Test Analyser (ICT)

Article number: N/A Category:

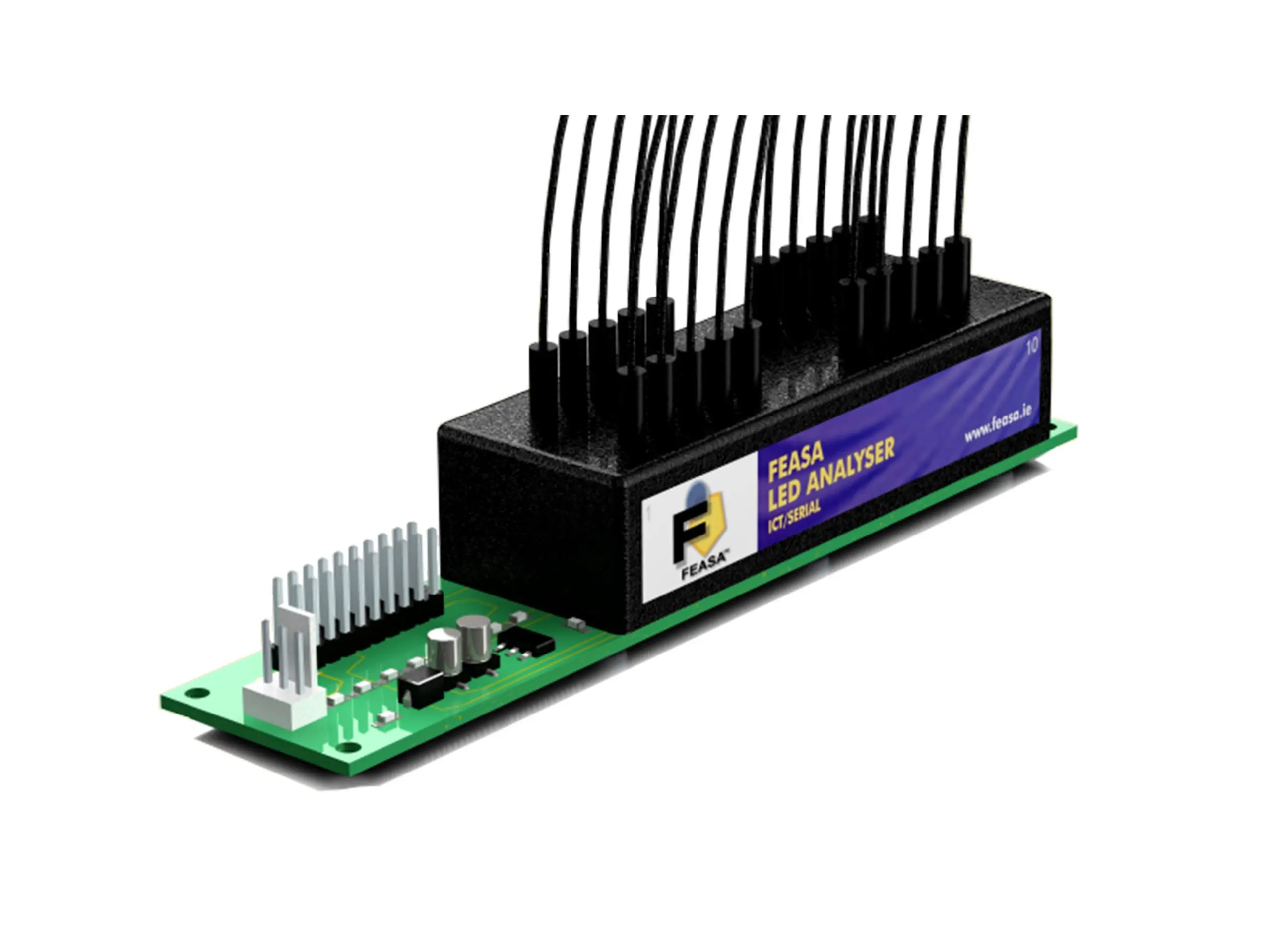

The Feasa In Circuit Analyser (ICT) is available in 3, 5, 10 and 20 channel configurations. Interfaces for this are RS232 or 20-pin port. This model can also be "triggered" by a trigger.

The devices with 3, 5 and 10 channels measure 100 mm x 29 mm x 50 mm - the model with 20 channels, on the other hand, measures 140 mm x 29 mm x 50 mm.

Each channel has a fibre length of 0.6 m, whereby the fibre has a diameter of 1.0 mm and allows a bending radius of 15 mm.

The analyser is designed for a wavelength range of 450 nm to 650 nm and a temperature range of 0 °C to +50 °C.

ISSUE: Red, green, blue (RGB), hue, saturation, intensity (HSI), dominant wavelength, CCT, CIE xy, CIE u'v depending on interface

DRIVERS FOR SOFTWARE: Test model for Agilent i3070, test code for Teradyne, DLL for testing, function sequence input Labview, C++
