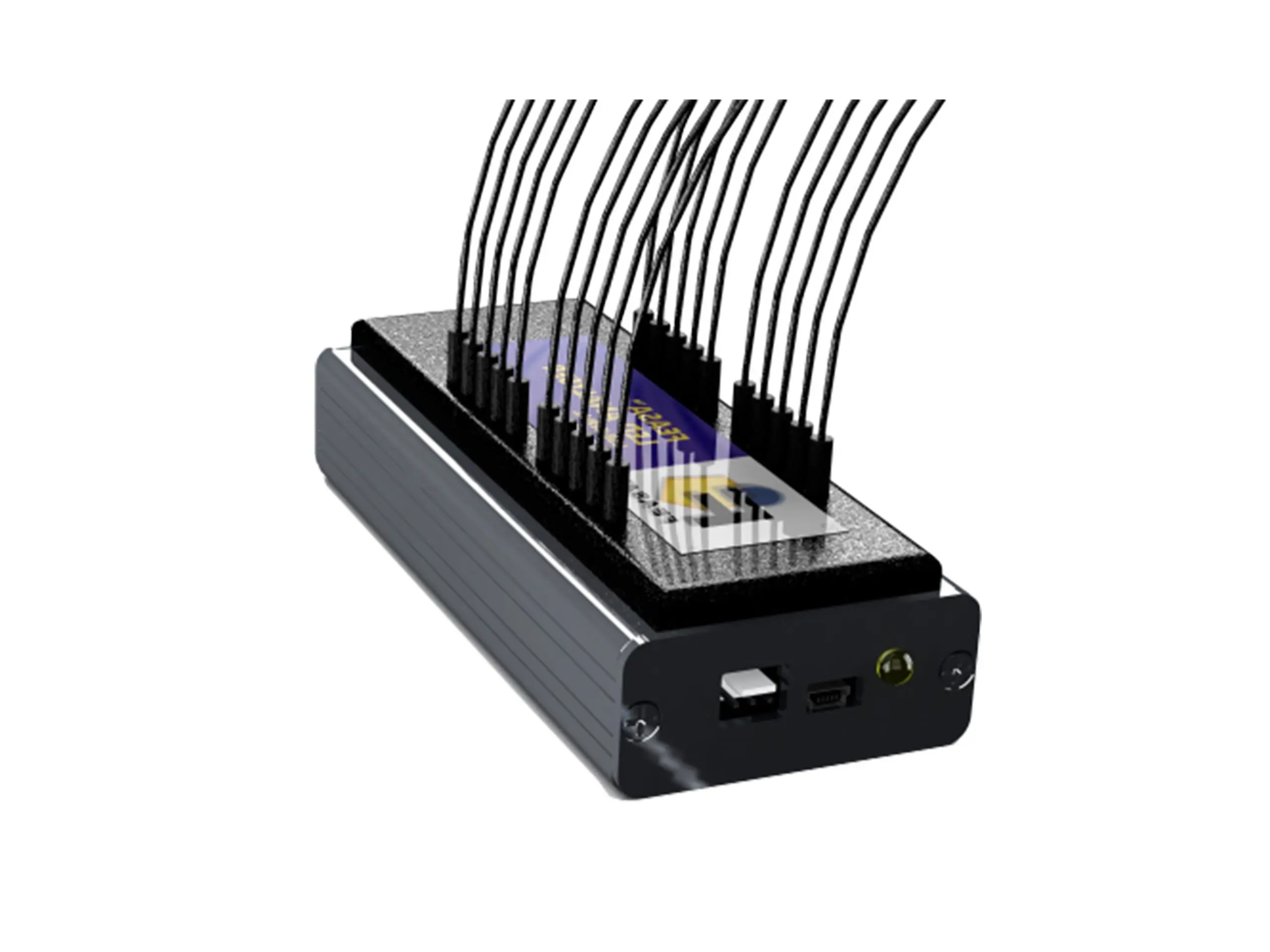

Infrared Analyser

SKU: N/A Category:

The Infrared LED Analyser contains a specially selected and processed fibre that must be used in conjunction with the Optical Head, which is specifically designed for infrared LED testing.

Ideal for security and monitoring applications. The analyser is available in 3, 10 and 20 channel configurations. Interfaces for this are USB, RS232 or daisy-chaining - several LED analysers can be connected to each other via the daisy-chain connections. Only one serial RS232 port is required to connect up to 30 LED analysers.

The devices with 3 and 10 channels measure 86 mm x 57 mm x 55 mm - the model with 20 channels, on the other hand, measures 127 mm x 57 mm x 55 mm.

Each channel has a fibre length of 0.6 m, whereby the fibre has a diameter of 1.04 mm ± 0.03 mm and allows a bending radius of 15 mm.

The analyser is designed for a wavelength range of 700 nm to 950 nm and a temperature range of 0 °C to +50 °C. With an accuracy of ± 10 nm for 700 nm to 900 nm wavelength and ± 20 nm for 900 nm to 950 nm; repeatability < 1 % of intensity.
