40-pin signal block | receiver side

Article number: n. v. Categories: , ,

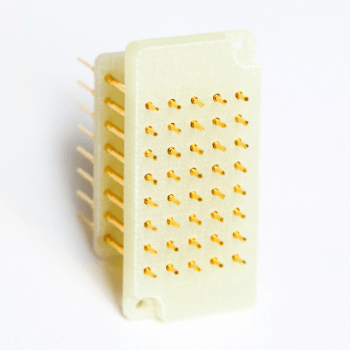

  • Receiver pylon block 40-pin signal block / pyramid small (Pk)
  • Material: 6mm EGS619
  • Spring contact - head shape = pyramid small
  • Sleeve aligned with WireWrap
  • Needle projection 4.3mm
  • Air gap (unwired) 3.18mm
  • Recommended working stroke: 2.6mm
  • Max. Rated current 3A
