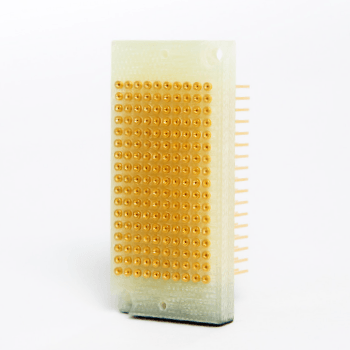

170-pin signal block | Adapter side

Article number: n. v. Categories: , ,
  • Adapter Pylonlock 170-pin signal block: small inner cone (IK06) standard - and high gold-plated / large inner cone (IK10) / plan (P)
  • Material: 6mm EGS619
  • Contact with inner cone 0.6mm (IK06 - 670004 = high gold plated / 699037 = standard gold plated)
  • Contact with inner cone 1.0mm (IK10 = KT-158 02 / P = KT-158)
  • Connection type WireWrap
  • Grid dimension = 2.54mm
  • Max. Rated current 1A

Explanation

IFB = Interface block
I = ITA / adapter side
170 = Number of contacts
IK / P = head shape
W = contact connection
HS = High Current / Supplement
1A = value
